Why are there 4-pin DC power connectors giving 2 identical voltages? How can they be hacked for 2-pin?

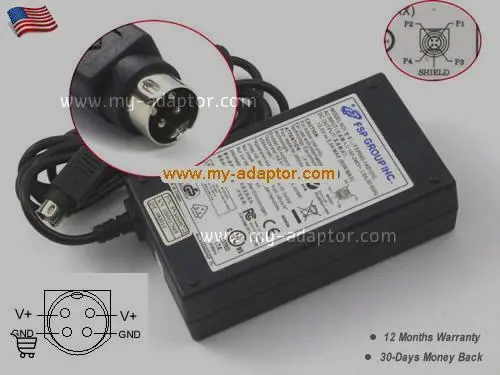

USA New Genuine LCD TV Monitor Adapter FSP060-1AD101C 12V 5A 60W for Sanyo CLT2054 CLT1554

High Quality $34.18 USA New Genuine LCD TV Monitor Adapter FSP060-1AD101C 12V 5A 60W for Sanyo CLT2054 CLT1554, fsp 12V 5A Adapter, FSP12V5A60W-4PIN-SZXF with low price and 1 year warranty

I bought the linked a/c→d/c PSU 2nd hand. I did not look at the connector (assumed it was barrel) and just focused on power attributes. Then when I got home I noticed it has 4-pins. Luckily there is a diagram on the sticker, which says:

P1,2=+12v P3,4=gnd

So I imagine P1 and P3 could supply 12v to a 12v device, and same for P2 with P4. Correct? I’m a bit surprised pins 3 and 4 are labeled ground and not negative. It’s a round connector, so I wonder if the outer ring is actually made to be negative. The a/c input is 3 pin (i.e. grounded).

I wonder if I am misunderstanding because I don’t get the point in 4 pins in this context. If the original appliance (LCD or whatever it is) needs two 12V supplies, why wouldn’t it simply be a 2 conductor barrel considering the appliance could internally wire two circuits in parallel?

I bought it to drive a device that needs a barrel. I’m not really happy to cut the connector off b/c I might one day end up with a 4-pin device, but I guess it’s not worthwhile to try to track down a 4-pin female tip locally to rig it up non-destructively.

To be clear, the appliance needs 12v 5A, which is how the 4-pin PSU is labeled. I hope it’s not a case where each of the 14v pins have 2.5A max.
